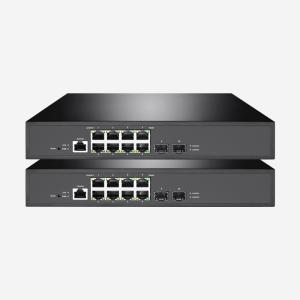

IEEE 802.3af/At Layer 2 Plus Switch With 8G PoE Ports 2G SFP 1 Console

Name: IEEE 8023afAt Layer 2 Plus Switch With 8G PoE Ports 2G SFP 1 Console
Brand: Sirivision
Price: 1 USD

Wholesale IEEE 802.3af/At Layer 2 Plus Switch With 8G PoE Ports 2G SFP 1 Console from china suppliers

Brand Name : Sirivision

Model Number : SR-SG3210FP

Certification : CE, ROHS, FCC, UKCA

Place of Origin : Shenzhen，China

MOQ : 20

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs Per Month

Delivery Time : 5-8 work days

Packaging Details : 1pc in box, 1pc Warranty Card in box

Product Name : 8GE, 2SFP and 1 Console Layer 2+ Gigabit Switch

Switching Capacity : 20Gbps

Ethernet Port : 10pcs

Total Power : 150 W

Input Voltage : AC100~240V

Material : Steel

Contact Now

Layer 2+ Gigabit Switch With 8G PoE Ports, 2G SFP And 1 Console SR-SG3210FP

8 Gigabit PoE Ports L2+ Managed Switch With 2G SFP Slots And 1 Console

Description Of The Gigabit Fiber Switch:

The SR-SG3210FP is a Layer 2 plus managed switch equipped with 8 Gigabit RJ45 ports, 2G SFP ports and a Console port. 8 RJ45 ports support 802.3af/at (PoE+) standard and provide 150 W total PoE power. Traditional network management has many problems: difficult to deploy and deliver, slow service response, time-consuming troubleshooting, high technical threshold, SiriVision switches provide a more efficient, simple, secure and easy-to-use management. Support port-based and VLAN-based source MAC address learning restrictions, effectively preventing the impact of user source MAC spoofing on device MAC table entries, resulting in normal users unable to learn MAC tables and flooding.

Features Of The 8 Port Managed Gigabit Switch:

Provides 8 10/100/1000Mbps RJ45 ports, 2 10/100/1000Mbps SFP fiber ports and 1 console port.
Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az, IEEE802.3af, IEEE802.3at.
Supports multiple VLAN types such as protocol VLAN, MAC VLAN and Voice VLAN, plays a role in multi-service converged networks.
Supports perfect SNMP management, support VCT, DDM (Digital Diagnostic Monitoring) and other features, quickly detect network faults and reduce the difficulty of operation and maintenance
Supports MAC address auto-learning and auto-aging.
19 inches full metal iron shell and internal power adapter design, suitable for rack installation.

Product Spectification Of The Multi Gig Poe Switch:

SR-SG3210FP
Power Supply	AC100~240V 50/60Hz
Standards	IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z
Ports	8 x 10/100/1000Mbps ports, 2 x 1000Mbps SFP ports, 1x Console port
Indicators	Electrical port indicators, sfp fiber port indicators, power input indicator, system running indicator.
Network medium	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF
Dimensions	271181.544.5 mm
PoE port	8 802.3at/af standard POE
PoE Pin Definition	1/2(+),3/6(-)
PoE power	130 W
Total power	150 W
Transfer Method	Store-and-Forward
MAC Address Table	8K
Switching Capacity	20Gbps
Packet Forwarding Rate	14.88Mpps
Packet Buffer	4.1Mbit
Jumbo Frame	10KBytes
Environment	Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Soft Features:

L3 Features	IPV4/IPV6
	Dynamic ARP
L2 Features	Flow Control
	802.3x (full duplex)
	Back pressure (half duplex)
	Link aggregation
Spanning Tree	802.1D (STP),802.1w (RSTP),802.1s (MSTP)
	ERPS,BPDU Filtering
	Automatic Edge Port
VLAN	8 groups Protocol-based VLAN
	VLAN Translation, VLAN VPN, GVRP
	256 MAC-based VLAN, Private VLAN
	Voice VLAN
	Monitoring VLANs
	IEEE802.1q VLAN,QinQ (IEEE 802.1ad)
	4096 static VLANs
multicast	IGMP Snooping(v1,v2,v3)
	MLD Snooping V1/V2
	Multicast VLAN Registration (MVR)
QoS	8 priority queues per port
	Support port-based and VLAN-based PolicyMap binding
	TOS, DSCP, 802.1p priority field rewrites
	Support flow classification based on ACL flow, COS, TOS, DSCP
	Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL	Custom ACL, MAC-based, IP-based, port-based
Security Features	IEEE 802.1X certification, Guest VLAN, Port-based, Host-based, MAC Auth, Web Auth
	Storm Control, Ports Security, Port Isolation, HTTPS
	DHCP Snooping, CPU Defence Engine, DoS Prevention, 256 IP Source Guard
	Dynamic ARP Check
	IP, MAC, Port Binding
	Dynamic VLAN Assignment, Management Access
	BPDU,SSH v1/v2, 8 TACACS+, 8 RADIUS
Management	Supported CLI, Console, SNMP v1/v2/V3, Web
Diagnosis	mirror Many-to-One
	UDLD,System Log (RFC3164)
	System Diagnosis, Network Diagnosis

Product Application Of The Best 8 Port Managed Switch:
