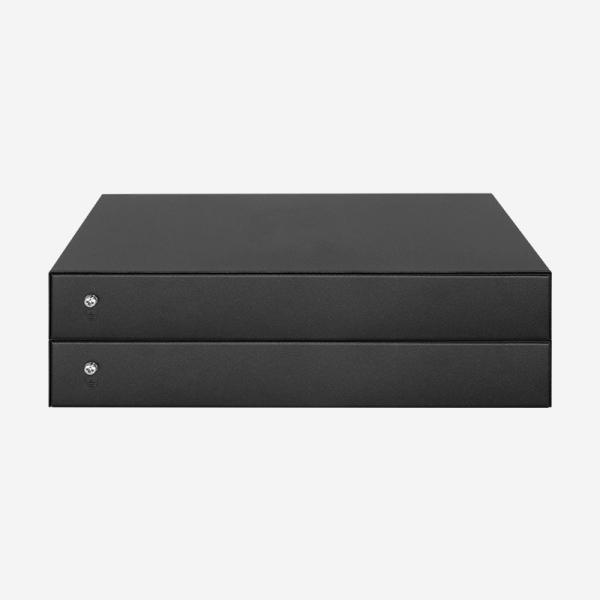

10 Port Full Gigabit Smart Managed PoE Switch With 30W RJ45 Ports And 2 SFP Slots

Name: 10 Port Full Gigabit Smart Managed PoE Switch With 30W RJ45 Ports And 2 SFP Slots
Brand: Sirivision
Price: 1 USD

Wholesale 10 Port Full Gigabit Smart Managed PoE Switch With 30W RJ45 Ports And 2 SFP Slots from china suppliers

Brand Name : Sirivision

Model Number : SR-SG2210FP-L

Certification : CE, ROHS, FCC, UKCA

Place of Origin : Shenzhen，China

MOQ : 20

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs Per Month

Delivery Time : 5-8 work days

Packaging Details : 1pc in box, 1pc Warranty Card in box

Product Name : 8 10/100/1000Mbps RJ45 2 Gigabit SFP Industrial Smart Managed PoE Switch

Mounting Method : desktop

Material : Steel Shell

Warranty : 1 Year

Switching Capacity : 20 Gbps

Forwarding Rate : 14.88 Mpps

Contact Now

54V/2.2A Industrial Ethernet Switch Poe 30W RJ45 Ports And 2 SFP Slots SR-SG2210FP-L

Easy Smart Full Gigabit PoE Switch With 8 10/100/1000M RJ45 Ports And 2 Gigabit SFP Slots

Description Of The Hardened Poe Switch:

The SR-SG2210FP-L is a 10 port full Gigabit industrial smart managed PoE switch equipped with eight 30W PoE+ ports and two SFP slots. The total 100 W PoE power budget for the 8× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Features Of The Rugged Poe Switch:

Offers high-bandwidth connectivity with high-speed 8× Gigabit RJ45 ports and 2× Gigabit SFP slots.
Supports IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at.
8 IEEE 802.3af/at PoE+ ports with a total PoE output power of 100 W, and up to 30 W per port.
The system adopts a brand-new hardware and software platform, providing users with brand-new technical features and solutions in terms of secure access strategy, multi-service support, easy management and maintenance, etc.
It provides high throughput for the most demanding network edge workgroups , while in small networks it can serve as the backbone for Gigabit switches and high-speed servers.
Support 8K MAC address.

Product Spectification Of The Industrial Ethernet Switch 8 Port:

SR-SG2210FP-L
Power Supply	54V/2.2A
Standards	IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z
Ports	8 10,100,1000Mbps RJ45 ports, 2 Gigabit optical ports
Indicators	8 electrical port speed indicator, 8 electrical port link/act indicator, power input indicator
Network medium	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF
Dimensions	22513535 mm
PoE port	8 802.3at/af standard POE
PoE Pin Definition	1/2(+),3/6(-)
PoE power	100 W
Transfer Method	Store-and-Forward
MAC Address Table	8K
Switching Capacity	20Gbps
Packet Forwarding Rate	14.88Mpps
Packet Buffer	1.5Mbit
Jumbo Frame	9KBytes
Environment	Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Soft Features:

L2 Switching Features	• IGMP Snooping - Supports IGMP Snooping
	• Link Aggregation - Supports static link aggregation
	• Port Mirroring
	• Cable Test
VLAN	• Supports up to 32 VLANs (out of 4K VLAN IDs
VLAN	• MTU/Port/802.1Q VLAN
Quality of Service (QoS)	• Support Port-based/802.1p/DSCP priority
	• Support 4 priority queues
	• Storm Control
	• Rate Limit
Management	• Web-based Graphic User Interface (GUI) • Smart-Configuration Utility
Ethernet Protocols	• IEEE 802.3 10BASE-T
	• IEEE 802.3u 100BASE-TX/FX
	• IEEE 802.3ab 1000BASE-T
	• IEEE 802.3x Flow Control
	• IEEE 802.1q VLANs/VLAN tagging
	• IEEE 802.1p QoS

Product Application Of The Industrial Power Switch:

10 Port Full Gigabit Smart Managed PoE Switch With 30W RJ45 Ports And 2 SFP Slots
