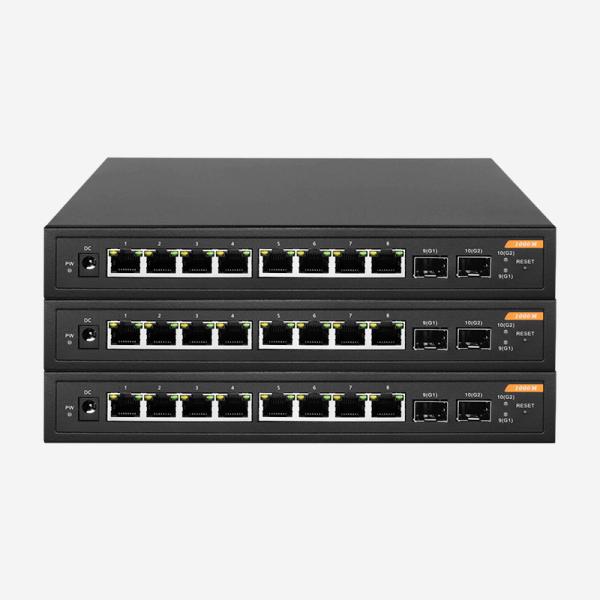

12V 1A Power Supply Easy Smart Full Gigabit Switch 8 10/100/1000M RJ45 Ports 2G SFP

Name: 12V 1A Power Supply Easy Smart Full Gigabit Switch 8 101001000M RJ45 Ports 2G SFP
Brand: Sirivision
Price: 1 USD

Wholesale 12V 1A Power Supply Easy Smart Full Gigabit Switch 8 10/100/1000M RJ45 Ports 2G SFP from china suppliers

Brand Name : Sirivision

Model Number : SR-SG2210F-L

Certification : CE, ROHS, FCC, UKCA

Place of Origin : Shenzhen，China

MOQ : 20

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs Per Month

Delivery Time : 5-8 work days

Packaging Details : 1pc in box, 1pc Warranty Card in box

Product Name : 8 10, 100, 1000M RJ45 Gigabit Easy Smart Switch

Power Supply : 12VDC/1A

Size : 225 *135 *35 mm

Material : Steel Shell

Ethernet Ports : 10

Working Temperature : 0-45℃

Contact Now

8 10, 100, 1000M RJ45, 2G SFP Easy Smart Switch, 12V, 1A Power Supply

Easy Smart Full Gigabit Switch With 8 10/100/1000M Ports and 2 Gigabit SFP Fiber Ports

Description Of The Layer 2 Switch :

The "SR-SG2210F-L" series is Sirivision's self-developed Gigabit Layer 2 managed Ethernet fiber switch. The switch is equipped with 8 Gigabit RJ45 auto-sensing ports and 2 Gigabit SFP fiber ports, all of which support full wire-speed forwarding. It is suitable for home, dormitory, hotel, enterprise and other application scenarios. Adopt high IC design to reduce power consumption as much as possible without affecting performance and save energy.

Features Of The L2 Switch:

Provide 8 10/100/1000Mbps RJ45 ports and 2 Gigabit SFP Fiber ports.
Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
Adopt store-and-forward transmission mode, automatically learn and update MAC address, 24 hours stable working without dropping connection.
Support WEB, SNMP(V1/V2)management.
Support IEEE 802.1Q VLAN, users can flexibly divide VLANs according to demand.
Support QoS, three priority modes based on port, 802.1P based and DSCP based, to optimize bandwidth configuration.

Product Spectification Of The Network Managed Switch:

SR-SG2210F-L
Power Supply	12VDC/ 1A
Standards	IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports	8×10/100/1000Mbps RJ45 ports, 2×SFP ports
Indicators	electrical port indicators, SFP fiber port indicators, power input indicator
Network medium	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF
Forwarding Mode	Store and Forward(Full Wire Speed)
Dimensions	22513535 mm
Switching Capacity	20Gbps
Packet Forwarding Rate	14.88Mpps
MAC Address Table	8K
Installation	Desktop installation
Packet Buffer	1.5Mbit
Jumbo Frame	9KBytes
Environment	Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Soft Features:

L2 Switching Features	• IGMP Snooping - Supports IGMP Snooping
	• Link Aggregation - Supports static link aggregation
	• Port Mirroring
	• Cable Test
VLAN	• Supports up to 32 VLANs (out of 4K VLAN IDs
VLAN	• MTU/Port/802.1Q VLAN
Quality of Service (QoS)	• Support Port-based/802.1p/DSCP priority
	• Support 4 priority queues
	• Storm Control
	• Rate Limit
Management	• Web-based Graphic User Interface (GUI) • Smart-Configuration Utility
Ethernet Protocols	• IEEE 802.3 10BASE-T
	• IEEE 802.3u 100BASE-TX/FX
	• IEEE 802.3ab 1000BASE-T
	• IEEE 802.3x Flow Control
	• IEEE 802.1q VLANs/VLAN tagging
	• IEEE 802.1p QoS

Product Application Of The Switch 10 Port Gigabit:

Product Tags:

12V Full Gigabit Switch

2G SFP Full Gigabit Switch
