Product Description:
The Gigabit Smart Switch boasts a wide range of features, including store-and-forward transmission method, and jumbo frame capabilities up to 9K bytes. With these features, the switch optimizes network performance by reducing the number of collisions and improving the overall speed of data transmission.
Designed for durability, this switch has a storage temperature range of -40℃~70℃ (-40℉~158℉), ensuring that it can withstand even the harshest environments. The internal power provides added convenience, making it easy to power the switch in any location.
Whether you're looking to upgrade your existing network or build a new one from scratch, the Gigabit Smart Switch is an excellent choice for businesses of all sizes. With its advanced features and cost-effective pricing, this L2 switch is sure to meet all of your networking needs.
Features:
- Product Name: Gigabit Smart Switch
- Dimensions: 440*190*44.5 mm
- Jumbo Frame: 9K Bytes
- Environment: Operating Temperature: 0℃~45℃ (32℉~113℉)
- Network Media: 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100m)
- Flow Control: IEEE 802.3x Flow Control
- Best smart home switches
- Smart switch desktop
- Smart managed
Technical Parameters:
| SR-SG2226F |
| Power Supply | AC100~240V 50/60Hz |
| Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az, 802.3z |

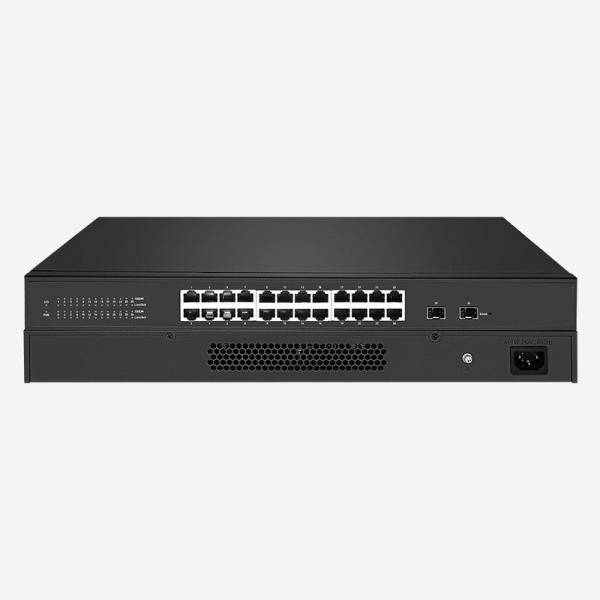

| Ports | 24×10/100/1000Mbps RJ45+2×SFP |
| Indicators | 24 electrical port speed indicators, 24 electrical port link/act indicators, power input indicator |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Dimensions | 440*190*44.5 mm |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 38.688Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
Customization:
Customize your Sirivision Gigabit Smart Switch to fit your specific needs with our Product Customization Services.
Our L2 switch, also known as a layer 2 switch or layer 2 managed switch, is designed and manufactured in Shenzhen, China with high-quality components and attention to detail.
The Gigabit Smart Switch comes with an internal power. Its transmission method is store-and-forward, and it has IEEE 802.3x Flow Control for efficient data transfer.
With a bandwidth of 52Gbps, this switch is ideal for small to medium-sized businesses that require fast and reliable network connectivity. It can operate in a relative humidity range of 10% to 90% non-condensing, making it suitable for a variety of environments.
FAQ:
Q: What is the brand name of this Gigabit Smart Switch?
A: The brand name of this Gigabit Smart Switch is Sirivision.
Q: Where is this Gigabit Smart Switch manufactured?
A: This Gigabit Smart Switch is manufactured in Shenzhen, China.
Q: What type of ports does this Gigabit Smart Switch have?
A: This Gigabit Smart Switch has 24 Gigabit Ethernet ports.
Q: Is this Gigabit Smart Switch suitable for home or business use?
A: This Gigabit Smart Switch is suitable for both home and business use.
Q: Does this Gigabit Smart Switch support VLAN?
A: Yes, this Gigabit Smart Switch supports VLAN.
