Product Description:
This smart switch is built to operate in a variety of environments, with an operating temperature range of 0℃~45℃ (32℉~113℉). The external power adapter provides power to the switch, with an output of 12V DC and 1A. The switch is designed to be energy-efficient.
The Gigabit Easy Smart Switch is a great choice for businesses looking for an affordable smart switch that is easy to manage. With its smart managed features, the switch provides advanced functionality, such as VLAN support, QoS prioritization, and traffic monitoring. The switch also features a web-based management interface, making it easy to configure and manage your network.
In summary, the Gigabit Easy Smart Switch is a smart switch that provides high-speed connectivity, advanced management features, and energy-efficient operation. Whether you are setting up a new network or upgrading an existing one, this smart switch is a great choice for businesses looking for a reliable, easy-to-use networking solution.
Features:
- Product Name: Gigabit Easy Smart Switch
- Dimensions (W x D x H): 160 * 95 * 30 mm
- Transmission Method: Store-and-Forward
- Bandwidth: 16Gbps
- Type: L2 Switch
- Usage: Smart switches for home
Technical Parameters:
| SR-SG2008 |
| Power Supply | 12VDC/1A |
| Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3z |
| Ports | 8 10,100,1000Mbps RJ45 ports |
| Indicators | 8 electrical port speed indicators, 8 electrical port link/act indicators, power input indicator |
Network
medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Dimensions | 160 * 95 * 30 mm |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 4K |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.904Mpps |
| Packet Buffer | 1.5Mbit |
| Jumbo Frame | 9KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:

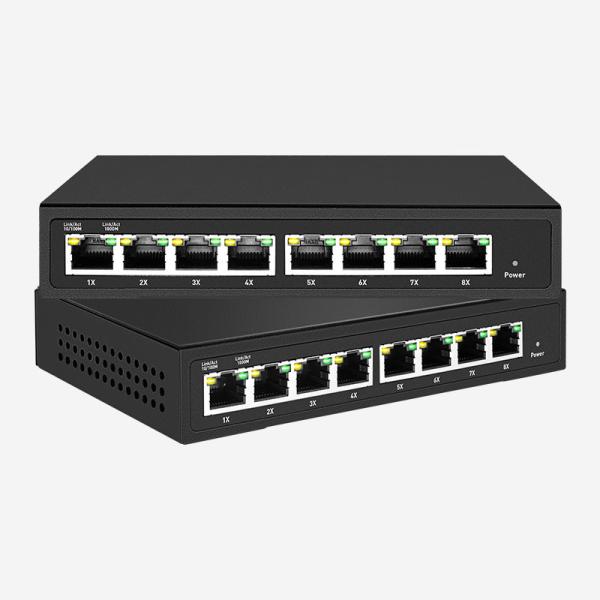

The Sirivision Gigabit Smart Switch features 8 10/100/1000 Mbps RJ45 ports, providing plenty of connectivity options for a variety of devices. And with IEEE 802.3x Flow Control, you can be sure that your data is being transmitted efficiently and without errors.
Whether you're looking to upgrade your home network or need a reliable switch for your office, the Sirivision Gigabit Smart Switch is an excellent choice. Its store-and-forward transmission method ensures that data is transmitted accurately, while its easy smart design makes it simple to set up and use.
Some common product application occasions and scenarios for the Sirivision Gigabit Smart Switch include:
- Small office or home office (SOHO) networks
- Multi-room home audio systems
- Home security systems
- Smart home automation systems
- Online gaming and streaming
Overall, the Sirivision Gigabit Smart Switch is a versatile and reliable switch that can meet the needs of a wide range of users. With its fast speeds and easy setup, this switch is the perfect choice for anyone looking to upgrade their home or office network.
Customization:
The Gigabit Easy Smart Switch is an L2 switch that supports IEEE 802.3x Flow Control for efficient data transfer. With a bandwidth of up to 16Gbps, it provides lightning-fast connectivity for all your networking needs.
In addition, our product customization services allow you to tailor the switch to your unique requirements. Whether you need specific port configurations, VLAN support, or QoS settings, we can help you design a switch that meets your needs.
Our switches are designed to operate in a wide range of environments, with a relative humidity range of 10% to 90% non-condensing. With our easy smart features, you can easily manage your network from anywhere, making it an ideal choice for businesses of all sizes.
FAQ:
Q: What is the brand name of the Gigabit Smart Switch?
A: The brand name is Sirivision.
Q: Where is the Gigabit Smart Switch manufactured?
A: It is manufactured in Shenzhen, China.
Q: What is the maximum data transfer rate of the Gigabit Smart Switch?
A: The maximum data transfer rate is 1000Mbps.
Q: Does the Gigabit Smart Switch support VLAN?
A: Yes, it supports VLAN.
Q: What is the warranty period for the Gigabit Smart Switch?
A: We cannot answer that as warranty-related content is excluded from this task. Please refer to the product manual or contact our customer support for warranty information.
