Product Description:
This switch boasts a high bandwidth of 20Gbps, which means that it can handle large amounts of data without any performance degradation. This makes it ideal for businesses that require a high-speed network to support their day-to-day operations.
The Gigabit Easy Smart Switch uses a store-and-forward transmission method that ensures that packets are delivered without errors. This helps to reduce network congestion and ensures that data is delivered quickly and efficiently.
With its easy-to-use web-based management interface, this switch is easy to configure and manage. It also comes with a range of advanced features, such as VLAN support, QoS, and link aggregation, which make it a versatile and flexible solution for any business.
Overall, the Gigabit Easy Smart Switch is a powerful and reliable Layer 2 switch that is perfect for small and medium-sized businesses. With its high bandwidth, Jumbo Frame support, and advanced features, it provides a cost-effective solution for businesses that require a high-speed and efficient network.
Features:
- Product Name: Gigabit Smart Switch
- Type: Smart Managed L2 Switch
- Jumbo Frame: 9K Bytes
- Operating Temperature: 0℃~45℃ (32℉~113℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Features: Easy Smart
Technical Parameters:
| SR-SG2210F-L |
| Power Supply | 12VDC/ 1A |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab |

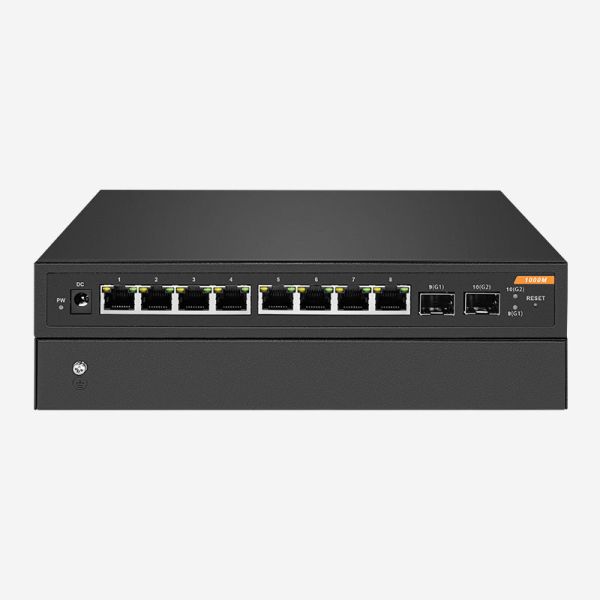

| Ports | 8×10/100/1000Mbps RJ45 ports, 2×SFP ports |
| Indicators | electrical port indicators, SFP fiber port indicators, power input indicator |
Network
medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 225*135*35 mm |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Installation | Desktop installation |
| Packet Buffer | 1.5Mbit |
| Jumbo Frame | 9KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
The Gigabit Smart Switch is manufactured in Shenzhen, China, to the highest standards of quality and performance. It is designed to operate in environments with relative humidity levels between 10% and 90% without condensation. The switch has a Jumbo Frame size of 9K Bytes.
The Gigabit Smart Switch is equipped with IEEE 802.3x Flow Control, which allows for efficient and reliable data transmission. It ensures that data is transmitted smoothly without any loss or delay. The switch is ideal for businesses that require high-speed data transfer and reliable network connectivity.
The Gigabit Smart Switch is suitable for various application occasions and scenarios. It can be used in small to medium-sized businesses, schools, hospitals, and other institutions that require reliable and efficient network connectivity.
The Smart Switch is designed to operate in an operating temperature range of 0℃~45℃ (32℉~113℉). This makes it ideal for use in various environments, including offices, data centers, and other industrial settings.
In conclusion, the Sirivision Gigabit Smart Switch is a high-performance L2 switch that is designed to enable efficient and reliable network connectivity. Its advanced features and capabilities make it suitable for various application occasions and scenarios. Whether you're running a small business or a large institution, the Gigabit Smart Switch is the ideal solution for your network connectivity needs.
Customization:
Sirivision offers product customization services for its Gigabit Smart Switch product, a smart managed switch for home and office use. Our smart switch is designed in Shenzhen, China. With dimensions of 225.2*124.5*35 mm, it is compact and easy to install. Our switch comes with an external power adapter that outputs 12V DC, 1A. It also supports Jumbo Frame up to 9K Bytes and IEEE 802.3x Flow Control.
FAQ:
1. Q: What is the brand name of this Gigabit Smart Switch?
A: The brand name of this Gigabit Smart Switch is Sirivision.
2. Q: Where is this Gigabit Smart Switch manufactured?
A: This Gigabit Smart Switch is manufactured in Shenzhen, China.
3. Q: Does this Gigabit Smart Switch support Power over Ethernet (PoE)?
A: No, this Gigabit Smart Switch does not support PoE.
4. Q: What is the maximum data transfer rate supported by this Gigabit Smart Switch?
A: This Gigabit Smart Switch supports a maximum data transfer rate of 1000Mbps.
5. Q: How many Ethernet ports does this Gigabit Smart Switch have?
A: This Gigabit Smart Switch has 8 Ethernet ports.
