Product Description:
The Gigabit Smart Switch is a smart switch desktop solution that provides fast and reliable connectivity to all your wired devices. With a bandwidth of 20Gbps, this switch can handle even the most demanding network traffic with ease. Whether you are streaming high-definition video or transferring large files, the Gigabit Smart Switch ensures that your network runs smoothly and efficiently.
One of the key features of the Gigabit Smart Switch is its support for IEEE 802.3x Flow Control. This technology ensures that data is transmitted smoothly and efficiently across the network, without any dropped packets or lost data. This makes the switch ideal for use in environments where high performance and reliability are critical.
The Gigabit Smart Switch is also highly energy-efficient. This means that you can enjoy fast and reliable network performance without having to worry about excessive power consumption or high electricity bills.
The switch is also equipped with a 8K MAC Address Table, which allows it to store and manage large numbers of MAC addresses. This makes it ideal for use in environments where a large number of devices need to be connected to the network.
Finally, the Gigabit Smart Switch is designed to operate in a wide range of environments, with an operating temperature of 0℃~45℃ (32℉~113℉). This makes it ideal for use in both indoor and outdoor settings, and ensures that it can withstand even the most extreme conditions.
In conclusion, the Gigabit Smart Switch is a powerful and versatile networking device that offers advanced features and functionality. It is the perfect solution for anyone looking for a high-performance L2 switch that can handle even the most demanding network traffic.
Features:
- Product Name: Gigabit Smart Switch
- Flow Control: IEEE 802.3x Flow Control
- Jumbo Frame: 9K Bytes
- Network Media: 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100m)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- L2 Switch: Yes
- Layer 2 Networking: Yes
- Easy Smart: Yes
Technical Parameters:
| SR-SG2210F-L |
| Power Supply | 12VDC/ 1A |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab |

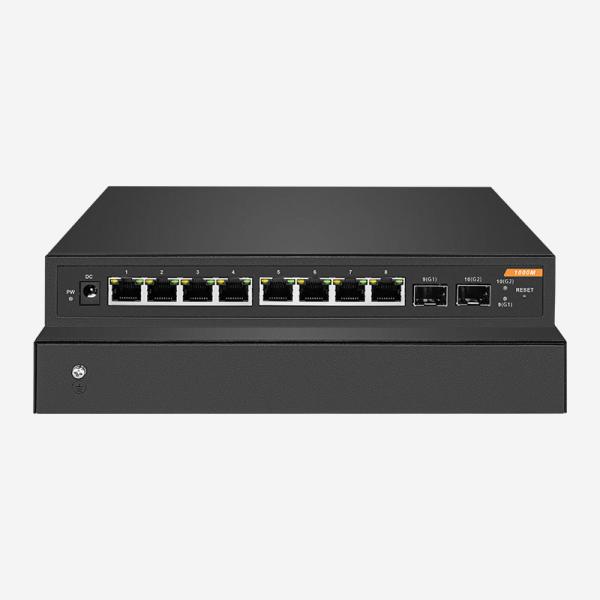

| Ports | 8×10/100/1000Mbps RJ45 ports, 2×SFP ports |
| Indicators | electrical port indicators, SFP fiber port indicators, power input indicator |
Network
medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 225*135*35 mm |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Installation | Desktop installation |
| Packet Buffer | 1.5Mbit |
| Jumbo Frame | 9KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
The Gigabit Easy Smart Switch has a Jumbo Frame of 9K Bytes, which means that it can handle data packets of up to 9K Bytes in size. This allows for faster data transmission and better network performance. The switch supports multiple network media, including 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100m). It also has a MAC Address Table of 8K, which is sufficient for most small to medium-sized networks.
This smart switch is ideal for occasions where layer 2 networking is required. It can be used in small to medium-sized businesses, educational institutions, and government agencies. The switch is also suitable for scenarios where there is a need for high-speed data transmission, such as video conferencing, online gaming, and file sharing.
The Gigabit Easy Smart Switch operates on a store-and-forward transmission method. This ensures that data is transmitted accurately and efficiently. The switch also supports Quality of Service (QoS) and VLAN technology, which enables network administrators to prioritize network traffic and improve network efficiency.
In conclusion, the Gigabit Easy Smart Switch from Sirivision is a reliable and efficient layer 2 networking solution. Its user-friendly interface and advanced features make it a preferred choice for small to medium-sized businesses. With its ability to handle high-speed data transmission and support for QoS and VLAN technology, the switch is suitable for a wide range of occasions and scenarios.
FAQ:
Q: What is the brand name of this gigabit smart switch?
A: The brand name of this gigabit smart switch is Sirivision.
Q: Where is this gigabit smart switch made?
A: This gigabit smart switch is made in Shenzhen, China.
Q: How many ports does this gigabit smart switch have?
A: This gigabit smart switch has 10 ports.
Q: Is this gigabit smart switch easy to set up?
A: Yes, this gigabit smart switch is easy to set up with its user-friendly interface and step-by-step instructions.
Q: Does this gigabit smart switch support VLAN?
A: Yes, this gigabit smart switch supports VLAN for secure and efficient network management.
