Product Description:
One of the key features of the Gigabit Smart Switch is its support for IEEE 802.3x Flow Control. This technology helps prevent packet loss by regulating the flow of data between devices. This ensures that your network is running smoothly and efficiently, even during peak usage periods.
The Gigabit Smart Switch also boasts a high bandwidth of 20Gbps, which means that it can handle large amounts of data traffic without any issues. This makes it an excellent choice for businesses that require high-speed connectivity for data-intensive applications.
In terms of power supply, the Gigabit Smart Switch comes with an external power adapter that outputs 12V DC, 1A. This ensures that the device is powered efficiently and reliably, providing stable connectivity to your network for extended periods.
In summary, the Gigabit Smart Switch is a reliable and efficient smart switch desktop device that is perfect for small to medium-sized businesses. Its support for IEEE 802.3x Flow Control, and high bandwidth, make it an excellent choice for those looking for the best smart home switches.
Features:

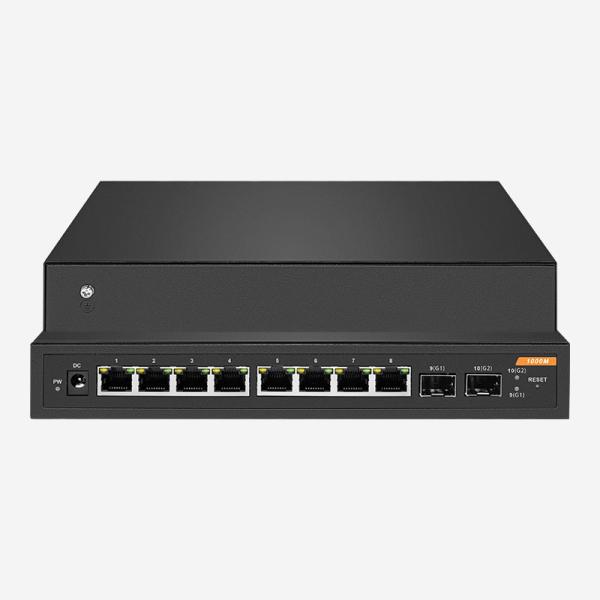

- Product Name: Gigabit Smart Switch
- Features: smart managed, smart switch desktop, layer 2 managed switch
- Bandwidth: 20Gbps
- MAC Address Table: 8K
- Operating Temperature: 0℃~45℃ (32℉~113℉)
- Relative Humidity: 10%~90% Non-condensing
Technical Parameters:
| SR-SG2210F-L |
| Power Supply | 12VDC/ 1A |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab |
| Ports | 8×10/100/1000Mbps RJ45 ports, 2×SFP ports |
| Indicators | electrical port indicators, SFP fiber port indicators, power input indicator |
Network
medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 225*135*35 mm |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Installation | Desktop installation |
| Packet Buffer | 1.5Mbit |
| Jumbo Frame | 9KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
The switch has a bandwidth of 20Gbps, which makes it suitable for high-speed data transfer and multimedia streaming. Its compact size and easy-to-use interface make it one of the best smart home switches available in the market. The switch can be used in various application occasions and scenarios, some of which are listed below:
- Smart switches for home: The Sirivision Gigabit Smart Switch is an excellent choice for home networks. It can connect multiple devices such as computers, gaming consoles, and media players to the internet, allowing you to enjoy seamless internet connectivity. Its compact size and energy-efficient design make it a perfect fit for modern homes.
- Small and medium-sized enterprises: The Sirivision Gigabit Smart Switch is an ideal choice for small and medium-sized enterprises. It can support multiple VLANs, which allows you to segment your network and improve security. Its 20Gbps bandwidth ensures that your network runs smoothly, even during peak traffic.
- High-speed data transfer: The switch's 20Gbps bandwidth makes it perfect for high-speed data transfer. Whether you are transferring large files or streaming multimedia content, the Sirivision Gigabit Smart Switch can handle it all with ease.
- Multi-device connectivity: The switch can connect multiple devices such as computers, printers, and storage devices, making it an ideal choice for both home and office networks. Its energy-efficient design ensures that it consumes minimal power while providing maximum connectivity.
- Non-condensing environments: The Sirivision Gigabit Smart Switch is designed to operate in non-condensing environments. It can operate in relative humidity ranging from 10% to 90%, making it an ideal choice for various application scenarios.
In conclusion, Sirivision Gigabit Smart Switch is a versatile and reliable networking device that is suitable for various application scenarios. Whether you are looking for smart switches for home or layer 2 networking devices for small and medium-sized enterprises, the Sirivision Gigabit Smart Switch is an excellent choice. Its energy-efficient design, compact size, and high-speed bandwidth make it one of the best smart home switches available in the market.
Customization:
Looking for a customizable layer 2 managed switch? Sirivision's Gigabit Smart Switch is the perfect solution for your networking needs. Made in Shenzhen, China, this smart managed switch has a MAC Address Table of 8K and comes with an external power adapter (Output: 12V DC, 1A). With a relative humidity of 10%~90% non-condensing, this layer 2 switch is reliable and efficient. The switch has 8 10/100/1000 Mbps RJ45 ports, making it perfect for businesses of all sizes.
FAQ:
Q: What is the brand name of this Gigabit Smart Switch?
A: The brand name is Sirivision.
Q: Where is this Gigabit Smart Switch manufactured?
A: It is manufactured in Shenzhen, China.
Q: How many ports does this Gigabit Smart Switch have?
A: This switch has 10 Gigabit Ethernet ports.
Q: Does this Gigabit Smart Switch support VLAN?
A: Yes, it supports VLAN (Virtual Local Area Network) and allows for network segmentation.
Q: Can this Gigabit Smart Switch be managed remotely?
A: Yes, it can be managed remotely through a web-based interface or SNMP (Simple Network Management Protocol).
