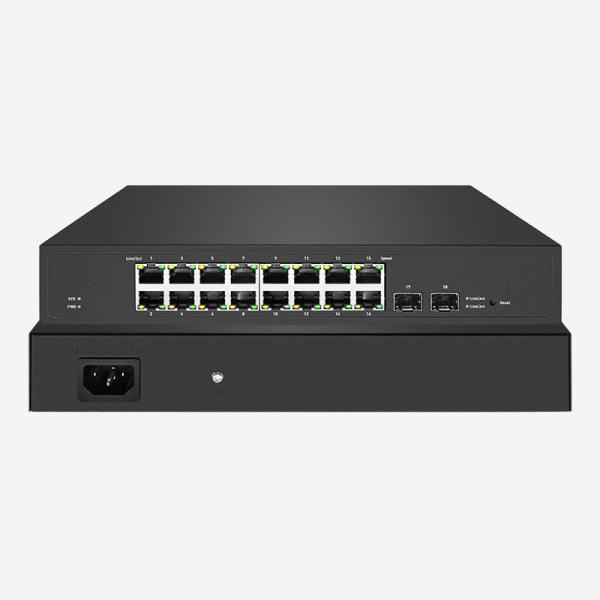

Product Description:
This smart switch is ideal for small and medium-sized businesses looking to expand their network capabilities. It has 18 Gigabit Ethernet ports that support jumbo frames of up to 9K bytes. This allows for seamless data transmission and faster network speeds.
The Gigabit Easy Smart Switch offers layer 2 networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation, and Port Mirroring. These features ensure efficient network management and improved network performance.
In terms of environmental suitability, this switch can operate within a temperature range of 0℃~45℃ (32℉~113℉). This makes it perfect for use in various environments.
In summary, the Gigabit Easy Smart Switch is a great choice for businesses looking for a reliable, efficient, and affordable layer 2 managed switch. It offers a range of networking features that make it easy to manage and configure. Its compact size and jumbo frame support also make it an ideal solution for businesses looking to expand their network capabilities.
Features:
- Product Name: Gigabit Smart Switch
- Type: Layer 2 Switch
- Dimensions: 271*181.5*44.5 mm
- Network Media: UTP Category 3, 4, 5 Cable (Max 100m)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Jumbo Frame: 9K Bytes
- Type of Switch: Smart Managed
Technical Parameters:
| SR-SG2218F-U13 |
| Power Supply | AC100~240V 50/60Hz |
| Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3z |
| Ports | 16 10,100,1000Mbps RJ45 ports, 2 Gigabit sfp fiber ports |
| Indicators | 16 electrical port speed indicators, 16 electrical port link/act indicators, power input indicator |
Network
medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Dimensions | 271*181.5*44.5 mm |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 36Gbps |
| Packet Forwarding Rate | 26.784Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
With its compact dimensions of 271*181.5*44.5 mm, this switch is suitable for use in a variety of scenarios.
The Sirivision Gigabit Smart Switch is perfect for use in small and medium-sized businesses that require a cost-effective and easy-to-use layer 2 managed switch. It offers features such as VLAN, QoS, and IGMP Snooping, which are essential for optimizing network performance.
The switch is also ideal for use in scenarios where there is a need for a high-speed network connection, such as in video surveillance, online gaming, and multimedia streaming. It provides fast data transfer speeds of up to 1000Mbps, making it perfect for transferring large files and streaming high-definition video without lag.
The Sirivision Gigabit Smart Switch is suitable for use in a variety of application occasions, including small and medium-sized business networks, school computer labs, and home entertainment networks. Its easy-to-use features make it an ideal choice for both novice and experienced network administrators.
FAQ:
-
What is the brand name of the Gigabit Smart Switch?
The brand name of the Gigabit Smart Switch is Sirivision.
-
Where is the Sirivision Gigabit Smart Switch manufactured?
The Sirivision Gigabit Smart Switch is manufactured in Shenzhen, China.
-
What is the maximum data transfer rate of the Sirivision Gigabit Smart Switch?
The maximum data transfer rate of the Sirivision Gigabit Smart Switch is 1000 Mbps.
-
How many ports does the Sirivision Gigabit Smart Switch have?
The Sirivision Gigabit Smart Switch has 18 ports.
-
What features does the Sirivision Gigabit Smart Switch have?
The Sirivision Gigabit Smart Switch has various features including VLAN support, QoS, IGMP snooping, port mirroring, and more.
