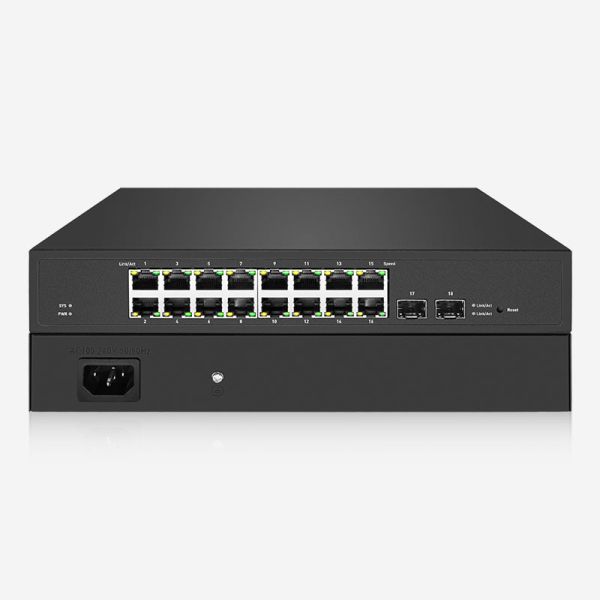

Product Description:
It is an energy-efficient option for businesses that require a reliable and cost-effective layer 2 switch. The switch uses the store-and-forward transmission method, which ensures that data is accurately transmitted and received without any errors or delays.
Whether you're setting up a small business network or upgrading an existing network, the Gigabit Smart Switch is an excellent choice for layer 2 networking. With its reliable performance, energy efficiency, and easy-to-use management interface, this switch is an ideal choice for businesses of all sizes.
Features:
- Product Name: Gigabit Easy Smart Switch
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Dimensions: 271*181.5*44.5 mm
- Flow Control: IEEE 802.3x Flow Control
- Layer 2 Switch
- Best Smart Home Switches
Technical Parameters:
| SR-SG2218F-U13 |
| Power Supply | AC100~240V 50/60Hz |
| Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3z |
| Ports | 16 10,100,1000Mbps RJ45 ports, 2 Gigabit sfp fiber ports |
| Indicators | 16 electrical port speed indicators, 16 electrical port link/act indicators, power input indicator |
Network
medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Dimensions | 271*181.5*44.5 mm |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 36Gbps |
| Packet Forwarding Rate | 26.784Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) | • Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management | • Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
The Gigabit Smart Switch is a layer 2 switch that is manufactured in Shenzhen, China. It is designed to provide a reliable and efficient network connection for small to medium-sized businesses. This switch is suitable for use in various settings, including offices, homes, and data centers.
The Gigabit Smart Switch is designed to operate within a wide range of temperatures, from 0℃ to 45℃ (32℉ to 113℉), making it ideal for use in harsh environments. It is also equipped with a Jumbo Frame of 9K Bytes, which enables it to handle large data packets efficiently.
The Gigabit Smart Switch uses a store-and-forward transmission method, which ensures that data is transmitted efficiently and accurately. It also has a MAC Address Table of 8K, which allows it to handle multiple devices on the network.
The Gigabit Smart Switch is ideal for use in various scenarios, including small to medium-sized businesses, home networks, and data centers. It can be used to connect computers, printers, servers, and other devices to the network.
In conclusion, the Sirivision Gigabit Smart Switch is a reliable and efficient smart switch desktop that is designed to meet the demands of modern network environments. With its robust features, low power consumption, and energy efficiency, it is an ideal solution for businesses and homes that require a high-performance switch.
Customization:
Made in Shenzhen, China, the Sirivision Gigabit Smart Switch boasts a range of impressive features. With a jumbo frame of 9K bytes, this switch is capable of handling even the most demanding applications with ease. Plus, with an operating temperature of 0℃~45℃ (32℉~113℉) and a storage temperature of -40℃~70℃ (-40℉~158℉), you can trust that this switch will perform reliably in any environment.
Measuring 271*181.5*44.5 mm, the Sirivision Gigabit Smart Switch is compact and easy to install, making it a great choice for home or office use. And with a bandwidth of 36Gbps, you can enjoy lightning-fast speeds and a seamless network experience.
But what really sets the Sirivision Gigabit Smart Switch apart is its customization services. Whether you're looking to tailor your switch to meet specific needs or simply want to add some extra features, our team of experts is here to help. With our product customization services, you can create the best smart home switches for your unique needs.
FAQ:
Here are some frequently asked questions and answers about the Sirivision Gigabit Smart Switch:
Q: What is the brand name of this product?
A: The brand name of this product is Sirivision.
Q: Where is this product made?
A: This product is made in Shenzhen, China.
Q: What is a Gigabit Smart Switch?
A: A Gigabit Smart Switch is a network switch that provides high-speed connectivity to devices on a local area network (LAN) while also offering advanced features such as virtual LANs (VLANs), Quality of Service (QoS) settings, and network security options.
Q: How many ports does this switch have?
A: This switch has 8 Gigabit Ethernet ports.
Q: Is this switch easy to set up?
A: Yes, this switch is designed to be easy to set up and configure. It comes with a user-friendly web interface that allows you to manage your network settings and monitor your network traffic.
