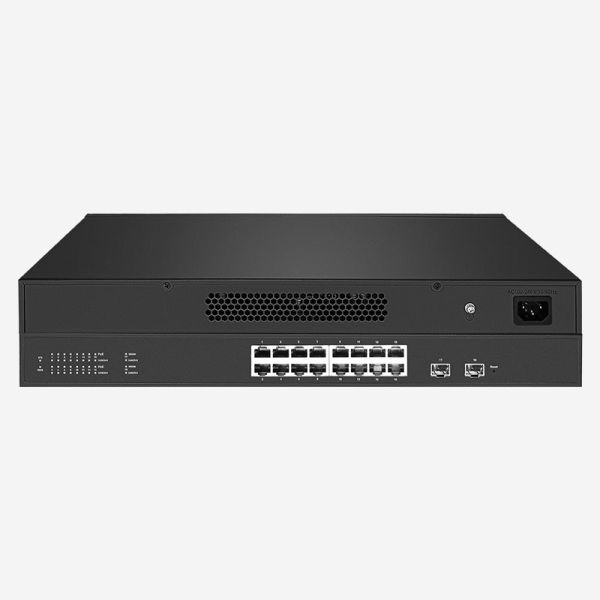

Product Description:
This PoE network switch offers a data transfer rate of 10/100/1000 Mbps, ensuring high-speed data transfer for all your network devices. The Smart PoE Switch is designed to be easy to install and operate, making it an ideal choice for those who are new to networking.
The Smart PoE Switch also features port mirroring, which allows you to monitor the network traffic on a specific port. This feature can be especially useful for troubleshooting network issues or diagnosing problems with specific devices.
The Smart PoE Switch comes with an internal power adapter, which provides reliable power to the switch. The switch is also designed to be energy-efficient, which can save you money on your monthly energy bill.
In summary, the Smart PoE Switch is an efficient and reliable PoE network switch that is perfect for small businesses and home offices. With its high-speed data transfer rate, port mirroring feature, and easy installation, the Smart PoE Switch is a great choice for anyone looking for a quality PoE Ethernet switch.
Features:
Product Name: Smart PoE Switch
- PoE Power Output: 30W
- Number of Ports: 18
- Port Mirroring: Yes
- QoS Support: Yes
This Smart PoE Switch is a reliable and efficient solution for powering and managing network devices. With its 30W PoE power output, this switch can supply power to various PoE-enabled devices such as IP cameras, access points, and more. With 18 ports, it can accommodate multiple devices and provide fast connectivity. The port mirroring feature allows for monitoring network traffic, while the QoS support ensures high-quality data transmission. Get this PoE Ethernet Switch for your network needs today!
Technical Parameters:
| SR-SG2218FP |
| Power Supply |
AC100~240V 50/60Hz |
| Standards |
IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z |
| Ports |
16 10,100,1000Mbps RJ45 ports, 2 Gigabit sfp fiber ports |
| Indicators |
16 electrical port speed indicators, 16 electrical port link/act indicators, power input indicator |
Network
medium |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF |
| Dimensions |
440*190*44.5 mm |
| PoE port |
16 802.3at/af standard POE |
| PoE Pin Definition |
1/2(+),3/6(-) |
| PoE power |
230 W |
| Total power |
250 W |
| Transfer Method |
Store-and-Forward |
| MAC Address Table |
8K |
| Switching Capacity |
36Gbps |
| Packet Forwarding Rate |
26.784Mpps |
| Packet Buffer |
4.1Mbit |
| Jumbo Frame |
10KBytes |
| Environment |
Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features |
• IGMP Snooping
- Supports IGMP Snooping |
• Link Aggregation
- Supports static link aggregation |
| • Port Mirroring |
| • Cable Test |
| VLAN |
• Supports up to 32 VLANs (out of 4K VLAN IDs |
| • MTU/Port/802.1Q VLAN |
Quality of Service
(QoS) |
• Support Port-based/802.1p/DSCP priority |
| • Support 4 priority queues |
| • Storm Control |
| • Rate Limit |
| Management |
• Web-based Graphic User Interface (GUI)
• Smart-Configuration Utility
|
| Ethernet Protocols |
• IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX |
| • IEEE 802.3ab 1000BASE-T |
| • IEEE 802.3x Flow Control |
| • IEEE 802.1q VLANs/VLAN tagging |
| • IEEE 802.1p QoS |
Applications:
The Smart PoE Switch is an ideal solution for small to medium-sized businesses that require a reliable and efficient network. With its 16 gigabit PoE ports, this switch can connect various devices such as IP cameras, wireless access points, and VoIP phones. The PoE Ethernet switch can provide power and data transmission to these devices, simplifying installation and reducing costs.
The Smart PoE Switch can operate at a temperature range of 0°C to 45°C (32°F to 113°F), making it suitable for use in different environments. Its compact design and easy-to-mount feature allow it to fit in any workspace. The LED indicators for power, link/activity, and PoE provide users with real-time status updates.
This PoE switch comes with Quality of Service (QoS) support, ensuring that critical network traffic is prioritized, resulting in a more reliable and efficient network. The QoS feature helps to avoid network congestion and ensures a seamless experience for users.
The Smart PoE Switch is an excellent choice for various application occasions and scenarios. It can be used in small offices, retail stores, and homes, among others. It is the perfect solution for those who require a reliable and cost-effective network.
In conclusion, Sirivision's Smart PoE Switch is a high-quality, efficient, and reliable product that can simplify network installations, reduce costs, and provide a seamless experience. It is the ideal solution for small to medium-sized businesses and various application occasions and scenarios.
FAQ:
Q: What is the brand name of this PoE switch?
A: The brand name of this PoE switch is Sirivision.
Q: Where is this PoE switch made?
A: This switch is made in Shenzhen, China.
Q: How many PoE ports does this switch have?
A: This switch has 16 PoE ports.
Q: What is the maximum power consumption of this switch?
A: The maximum power budget of this switch is 250W.
Q: What is the warranty period for this switch?
A: Please refer to the warranty statement provided with the product for details on the warranty period.
